■The brief：

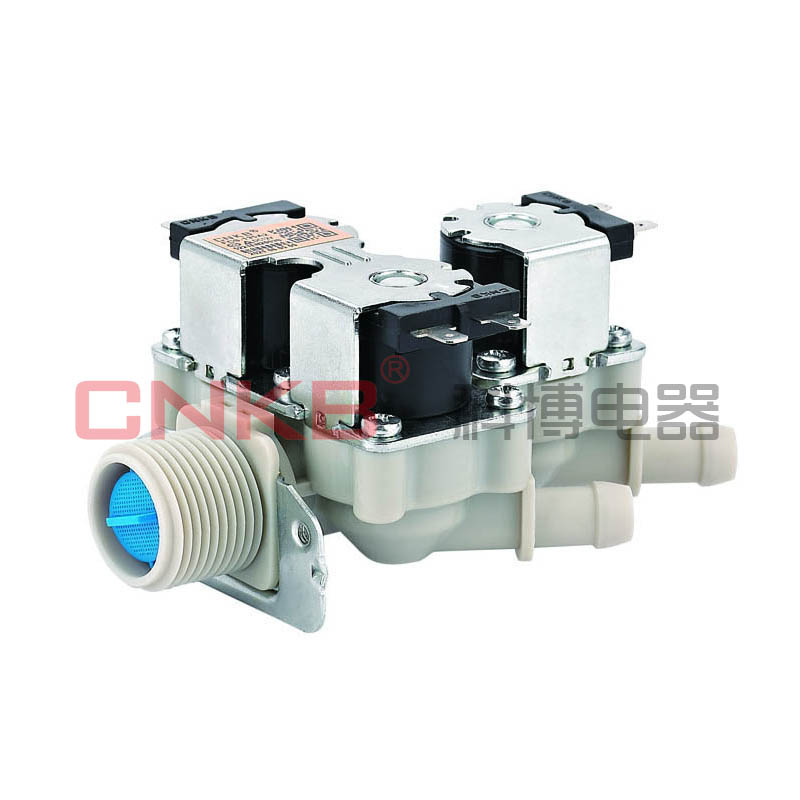

FCS-135A2
his series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FCS-135A2  is designed for Top-drum laundry dryer .

■main technical details

rated voltage

DC12V

DC24  36V
working voltage

DC12V ±15%

DC24  36V ±15%
Pressure range

0.02~1.3Mpa

0.02~1.3Mpa
medium temperature

0~100℃

0~100℃
working life

≥100,000 times

≥100,000 times

■flow characteristic

part No. hydrauli pressure 0.03Mpa 0.1~0.8Mpa
FCS-135A2
 flow rate V1 3～8L/min 8～15L/min
V2 3～8L/min
 8～15L/min
V3 0.2～0.7L/min
 0.2～0.7L/min

■assembly dimensions: 2× M4 Square gasket（square nut）

■Inlet：G3/4

■Outlet: 3×Φ12mm

■spacing:45mm

■Customer design and OEM service are provided
