Product Show Location：HomeProductsWater Household Appliances Switch Series

  • Product Detail
■The brief：

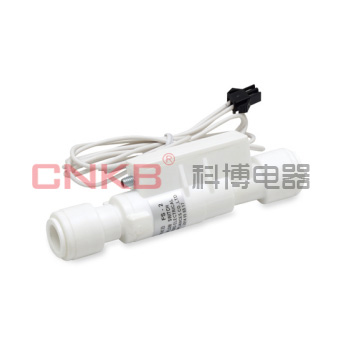

FS-2 (Flow Switch)

Series of inlet and outlet solenoid valve with  novel design, unique structure,also with  excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine , pipeline machine, water purifying machine , coffee machine and other home appliances.

■ main technical details

Water Pressure Range 0~0.8Mpa
medium temperature 0~100℃
Working life

≥100,000 times

The Maximum Switching Voltage

100VDC

The Maximum Switching current

0.5A

Break Contact Resistance

≥100MΩ

Closed Contact Resistance

≤0.1MΩ

The Maximum Switching Capacity

10VA


■Inlet：3/8 in fast connection

■Outlet: 3/8  in fast connection

■Wire Harmess Specification: RV-90  0.3mm  with length 500mm

■terminal Specifcation:SM-2y

■Customer design and OEM service are provided
