Product Show Location：HomeProductsWater Household Appliances Solenoid Valve Series---Integrated Water Conduit Accessories

  • Product Detail
■The brief：

■The brief：

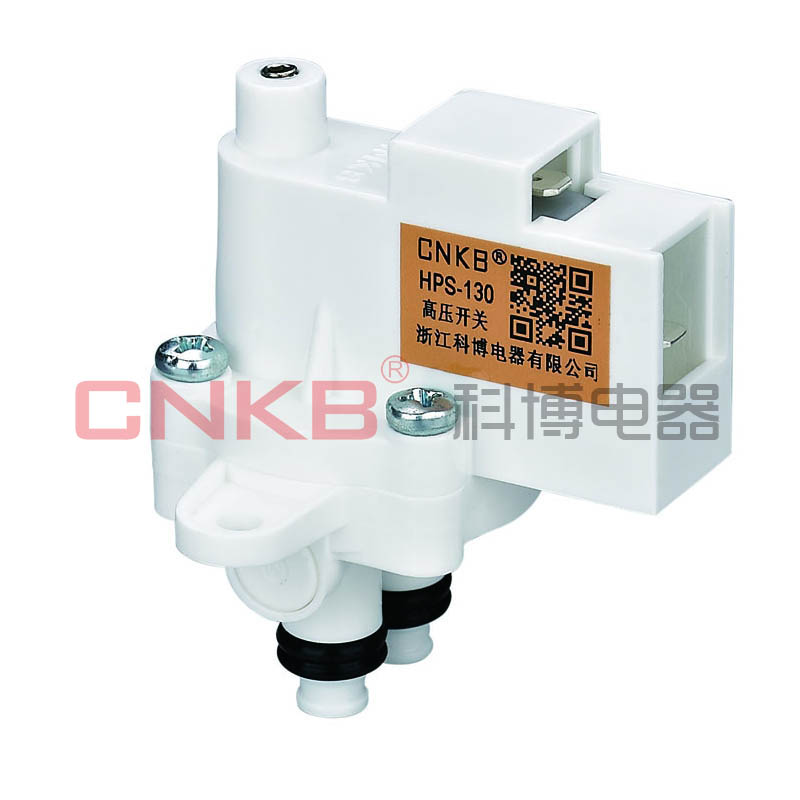

HPS-130 (High Pressure Switch)

Series of inlet and outlet solenoid valve with  novel design, unique structure,also with  excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine , pipeline machine, water purifying machine , coffee machine and other home appliances.

■ main technical details

Rated voltage DC12V DC24V DC36V
Working voltage DC12V±15% DC24V±15% DC36V±15%
Water Pressure Range 0~0.4Mpa
Working life

≥100,000 times

■ Operation Water Pressure:

When water pressure up from 0 to  0.25Mpa ±0.05Mpa ,switch off ;

When water pressure drop to 0.15Mpa± 0.05Mpa ,switch on ;

Difference Value between two operations　△ p≥ 0.1Mpa

■ Action water pressre:

Check valve should be able to check normally under the reverse 0.1Mpa water pressure ;

and should be no penetration ,dripping phenomenon

■Mounting Type：48mm  2×?4mm

■Inlet /Oulet: ￠7mm

■Inlet/Oulet Center Distance: 13mm

■Customer design and OEM service are provided


Series of inlet and outlet solenoid valve with  novel design, unique structure,also with  excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine , pipeline machine, water purifying machine , coffee machine and other home appliances.

■ main technical details

Rated voltage DC12V DC24V DC36V
Working voltage DC12V±15% DC24V±15% DC36V±15%
Water Pressure Range 0~0.4Mpa
Working life

≥100,000 times

■ Operation Water Pressure:

When water pressure up from 0 to  0.25Mpa ±0.05Mpa ,switch off ;

When water pressure drop to 0.15Mpa± 0.05Mpa ,switch on ;

Difference Value between two operations　△ p≥ 0.1Mpa

■ Action water pressre:

Check valve should be able to check normally under the reverse 0.1Mpa water pressure ;

and should be no penetration ,dripping phenomenon

■Mounting Type：48mm  2×?4mm

■Inlet /Oulet: ￠7mm

■Inlet/Oulet Center Distance: 13mm

■Customer design and OEM service are provided
