■The brief：

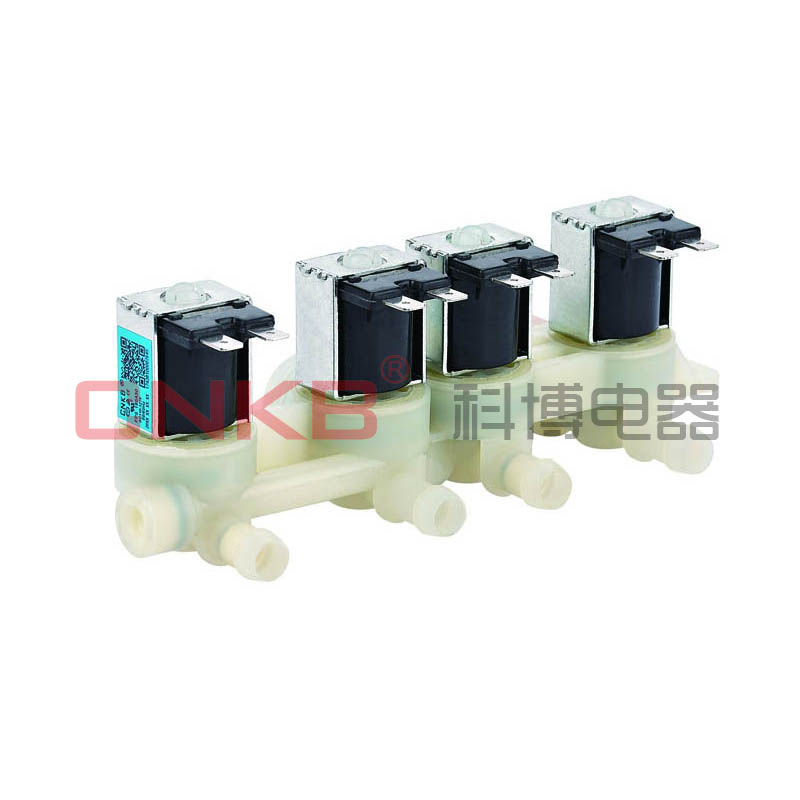

FPS-180A50
this series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FPS-180A50 is designed for Top-drum laundry dryer .

■main technical details

rated voltage

AC110V 50/60Hz

AC120V 50/60Hz
working voltage

AC110V ± 15%

AC120V ± 15%
Pressure range

0.02~1.0Mpa

0.02~1.0Mpa
medium temperature

0~100℃

0~100℃
working life

≥100,000 times

≥100,000 times

■flow characteristic

Water pressure
 0.02Mpa 0.1Mpa
 0.3Mpa
 0.8Mpa
Flow rate V1 /V3 2~6L/min 8~12L/min 12.8~19.2L/min 18.7~25.3L/min
V2 /V4 0.5~2.5L/min 3.2~4.8 L/min 4~6L/min 4～6L/min


■Inlet：G3/4

■Outlet: 4×Φ12mm

■spacing:125×13mm    3×Φ5

■Customer design and OEM service are provided
