Product Show Location：HomeProductsWashing Machine Solenoid Valve Series

  • Product Detail

■The brief：

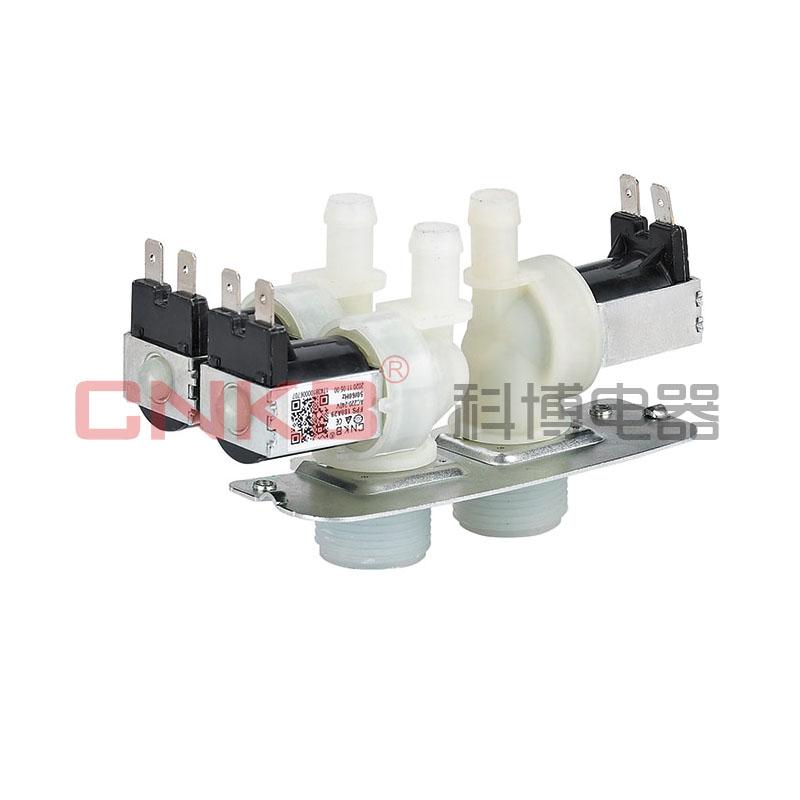

FPS-180A29
his series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FPS-180A29  is designed for Top-drum laundry dryer .

■main technical details

rated voltage

AC110V 50/60Hz

AC220V 50/60Hz
working voltage

AC110V ±15%

AC220V ±15%
Pressure range

0.02~1.0Mpa

0.02~1.0Mpa
medium temperature

0~100℃

0~100℃
working life

≥100,000 times

≥100,000 times

■flow characteristic

part No. hydrauli pressure 0.02Mpa 0.1~1.0Mpa
FPS-180A29
 flow rate V1 ≥2.5L/min 6.8～9.2L/min
V2 ≥2.5L/min
 6.8～9.2L/min
V3 ≥2.5L/min
 6.8～9.2L/min

■assembly dimensions: 2× M4 Square gasket（square nut）

■Inlet：2×G3/4

■Outlet: 3×Φ12mm

■spacing:96mm

■Customer design and OEM service are provided
