Product Show Location：HomeProductsWashing Machine Solenoid Valve Series

  • Product Detail

■The brief：

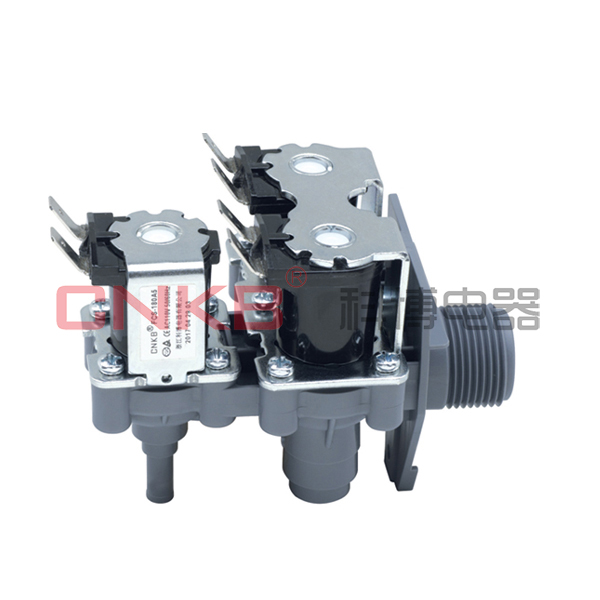

FCS-180A5
this series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FCS-180A5 is designed for Top-drum laundry dryer .

■main technical details

rated voltage

AC110V 50/60Hz

AC220V 50/60Hz
working voltage

AC110V ± 15%

AC220V ± 15%
Pressure range

0.02~1.0Mpa

0.02~1.0Mpa
medium temperature

0~100℃

0~100℃
working life

≥100,000 times

≥100,000 times

■flow characteristic


water pressure

0.02MPa

0.2～0.8MPa

flow

L/min

W

3～18

10～18

S/D

1～7

1～7

■Inlet：G3/4

■Outlet: 2×Φ15.2mm   1×Φ7mm

■spacing:56±0.2mm   2×￠4.2mm

■Customer design and OEM service are provided
