ProductsWater Household Appliances Solenoid Valve Series---Integrated Water Conduit Accessories

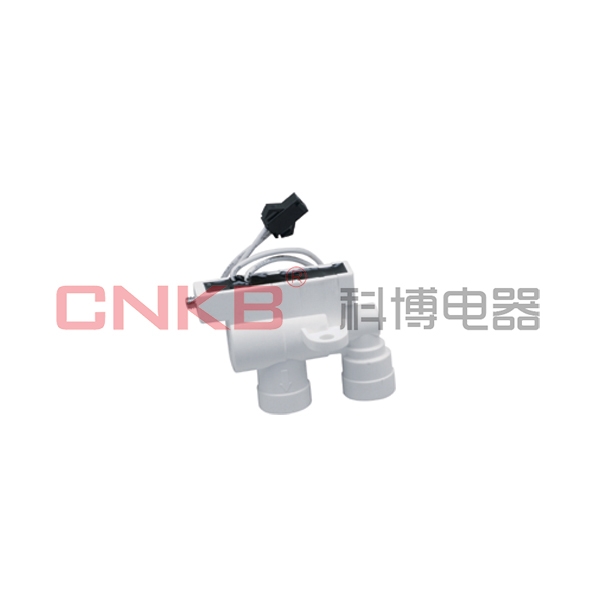

FS-30 (Flow Switch)
Series of inlet and outlet solenoid valve with novel design, unique structure,also with excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine , pipeline machine, water purifying machine , coffee machine and other home appliances.
|
■ main technical details |
| Water Pressure Range | 0~0.8Mpa |
| medium temperature | 0~100℃ |
| Working life |
≥100,000 times |
|
The Maximum Switching Voltage |
100VDC |
|
The Maximum Switching current |
0.5A |
|
Break Contact Resistance |
≥100MΩ |
|
Closed Contact Resistance |
≤0.1MΩ |
|
The Maximum Switching Capacity |
10VA |
|
|
|
■Inlet/ Outlet：￠7mm ■Inlet/Outlet Center Distance: 13mm ■ Mounting Spacing:25mm 2×￠4mm ■Wire Harmess Specification: RV-90 0.3mm with length 320mm ■terminal Specifcation:C3B-2Y ■Customer design and OEM service are provided |
|
 |
