Product Show Location：HomeProductsWashing Machine Solenoid Valve Series

  • Product Detail

■The brief：

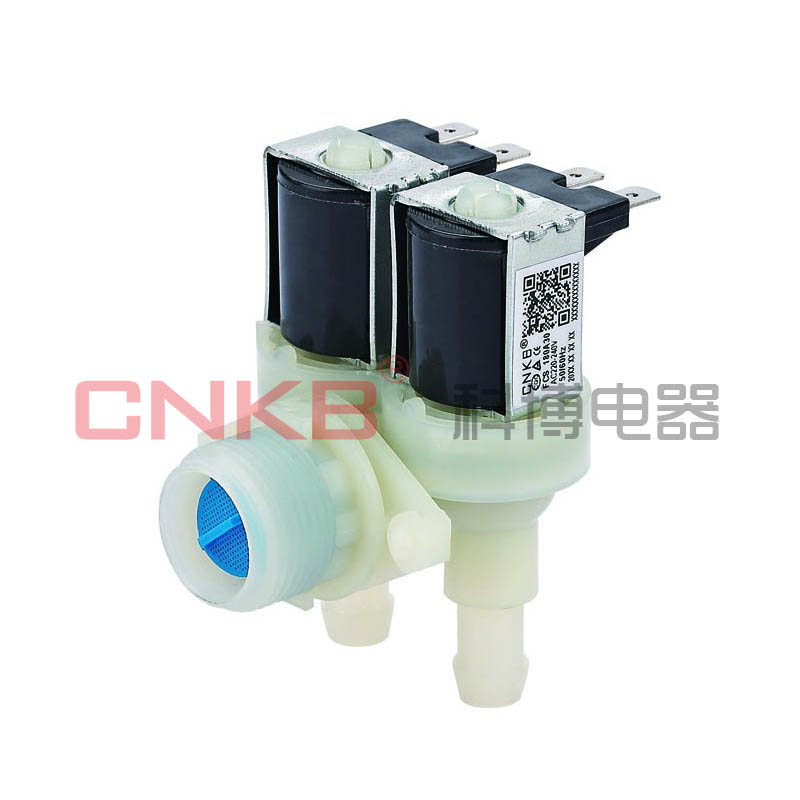

FCS-180A30
this series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FCS-180A30 is designed for Top-drum laundry dryer .

■main technical details

rated voltage

AC100V 50/60Hz

AC220V 50/60Hz
working voltage

AC100V ± 15%

AC220V ± 15%
Pressure range

0.02~1.0Mpa

0.02~1.0Mpa
medium temperature

0~100℃

0~100℃
working life

≥100,000 times

≥100,000 times

■flow characteristic

Water pressure
 0.02Mpa 0.1Mpa
 0.5Mpa
 1.0Mpa
Flow rate V1  there is outlet water 0.25L/min 0.25L/min 0.25L/min
V2  ≥2.5L/min 6.8~9.2 L/min 6.8~9.2L/min 6.8～9.2L/min


■Inlet：G3/4

■Outlet: 2×Φ12mm

■Customer design and OEM service are provided
