Product Show Location：HomeProductsWashing Machine Solenoid Valve Series

  • Product Detail

■The brief：

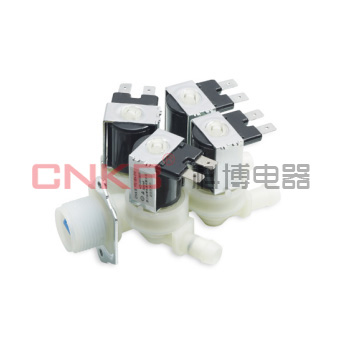

FPS-180A-SY6

this series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FPS-180A-SY6 is designed for Top-drum laundry dryer .

■main technical details

rated voltage

AC110V 50/60Hz

AC220V 50/60Hz
working voltage

AC110V ± 15%

AC220V ± 15%
Pressure range

0.02~1.0Mpa

0.02~1.0Mpa
medium temperature

0~100℃

0~100℃
working life

≥100,000 times

≥100,000 times

■flow characteristic

part No. hydrauli pressure main water-inlet(A side) Softener side(B side) Bubble side (C side) ondensed water side(D side)
FPS-180A-SY6 0.02~0.1MPa ＞1L/min ＞3L/min ＞3L/min 0.1～0.4L/min
0.1~0.8MPa 2.3~8L/min 8~12 L/min 8~12L/min 0.1～0.4L/min


■Inlet：G3/4

■Outlet: 4×Φ12mm

■spacing:45±0.2mm    2×M4

■Customer design and OEM service are provided
