■The brief：

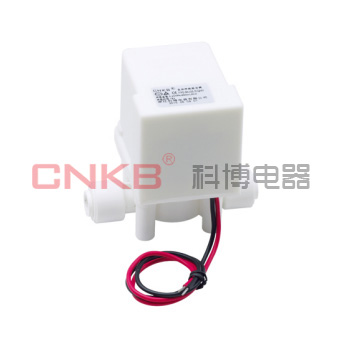

FPD-90J30
Series of inlet and outlet solenoid valve with  novel design, unique structure,also with  excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine , pipeline machine, water purifying machine , coffee machine and other home appliances.

■ main technical details

Rated voltage

DC12、24、36V

With pc board,cut off after 18s power on automatically

Working voltage DC12、24、36V±15%
Water Pressure Range 0.02~0.8Mpa
medium temperature 0~100℃
Working life

≥100,000 times

■ flow rate  characteristic

Water Pressure

0.3MPa

FLOW ＞3.0L/min

Waste water flow rate:

when water pressure is 0.42Mpa,the wastewater flow is (300/420/550/800/1000/1500) ±10% ml/min

■Inlet：1/4 quick connect

■Outlet: 1/4 quick connect

■Mounting spacing: bottom mounting 25×25mm

■Wire Harmess Specification: RV-90  0.3mm  red / black with length 235mm

■Customer design and OEM service are provided
