■The brief：

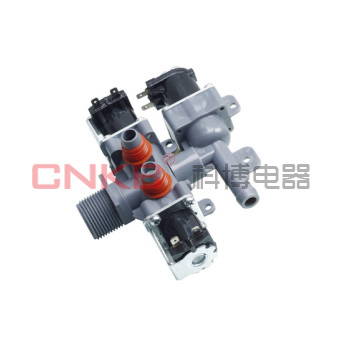

FCS-270A (Combination Valve)

this series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FCS-270A is designed for Top-drum laundry dryer .

■main technical details

Rated voltage

DC12、24、36V
working voltage

DC12、24、36V ± 15%

water pressure range

0.02~1.0Mpa

medium temperature

0~100℃

working life

≥100,000 times

■flow characteristic

water pressure

0.02MPa

0.1～0.3MPa

0.8MPa
outlet

V1

2～5L/min

4～6 L/min

4～6 L/min

V2

≥4.0L/min

＞8 L/min

19～23L/min

V3

2～5L/min

4～6 L/min

4～6 L/min


■Inlet：G3/4

■Outlet: 3×Φ12.0mm

■spacing:54.8±0.2mm   2×￠4.4mm

■Customer design and OEM service are provided
