Product Show Location：HomeProductsWashing Machine Solenoid Valve Series

  • Product Detail

■The brief：

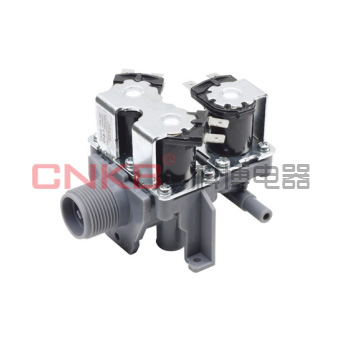

FCS-135C

his series is the latest development of three and four-way solenoid inlet valve ,using imported product technology, advanced design reasonable, unique structure, hot and cold water applications, and a wide range of applications, a dedicated anti-plug design, applicable to Drum machines, water supply electric control equipment. item FCS-135C  is designed for Top-drum laundry dryer .

■main technical details

rated voltage

AC110V 50/60Hz

AC220V 50/60Hz
working voltage

AC110V ±15%

AC220V ±15%
Pressure range

0.02~1.0Mpa

0.02~1.0Mpa
medium temperature

0~100℃

0~100℃
working life

≥100,000 times

≥100,000 times

■flow characteristic

part No. hydrauli pressure main water-inlet(O side) Softener side(P side) ondensed water side(B side)
FCS-135C 0.02~0.1MPa 1~12L/min 1.0~6.5L/min 0.33±0.15L/min
0.1~1.0MPa 4~12L/min 1.5~6.5L/min 0.47±0.15L/min

■Inlet：G3/4

■Outlet: 2×Φ15.5mm / Φ8mm

■spacing:76±0.2mm

■Customer design and OEM service are provided
