Product Show Location：HomeProductsWashing Machine Solenoid Valve Series

  • Product Detail

■The brief：

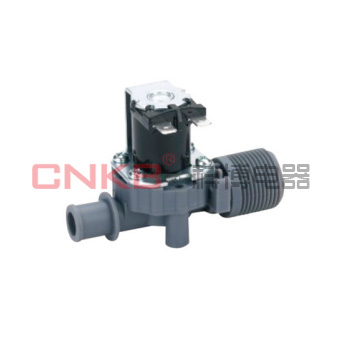

FPD-270F
Series water-inlet solenoid valve, with a special anti-plug design, applicable to automatic washing machines, tableware washing machines, water supply, water control valves, and other electric control equipment in the water, also can be the induction valve for public facilities or family use .

■main technical details

rated voltage

AC110V 50/60Hz AC220V 50/60Hz
working voltage AC110V ± 15% AC220V ± 15%
Pressure range
 0.02~1.0Mpa 0.02~1.0Mpa
working life ≥100,000 times ≥100,000 times

flow characteristic

hydrauli pressure 0.02Mpa 0.1Mpa 0.3Mpa 0.8Mpa
flow rate >3.0L/min >8L/min >13L/min <25L/min
>5.0L/min >10L/min >15L/min >25L/min

■assembly dimensions: 2× M4 Square gasket（square nut）

■Inlet：G3/4

■Outlet: Φ16mm

■spacing:38.0±0.2mm

■Customer design and OEM service are provided
