Water Household Appliances Solenoid Valve Series---Integrated Water Conduit Accessories

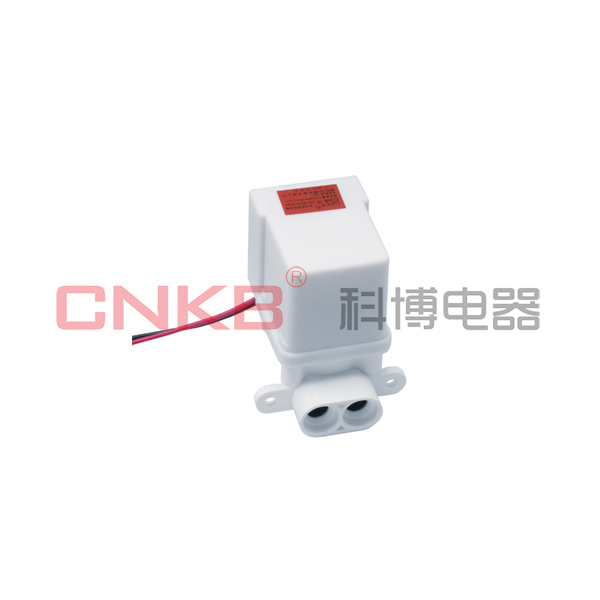

	FPD-180Y30(Time Delay Valve)
Series of inlet and outlet solenoid valve with  novel design, unique structure,also with  excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine , pipeline machine, water purifying machine , coffee machine and other home appliances.
|
				 ■ main technical details  |


  |

| Water Pressure Range | 0.02~0.8Mpa |
| medium temperature | 0~100℃ |
| Working life |
				 ≥100,000 times  |

| ■ flow rate characteristic |

 ■Inlet:¢7.0mm ■Outlet: ¢7.0mm ■Inlet/Outlet Spacing:13mm ■Mounting spacing: 2×¢4mm 41mm ■Wire Harmess Specification: RV-90 0.3mm red / black with length 235mm ■Customer design and OEM service are provided  |
		||||||||

                         |

                            ![]()  |
